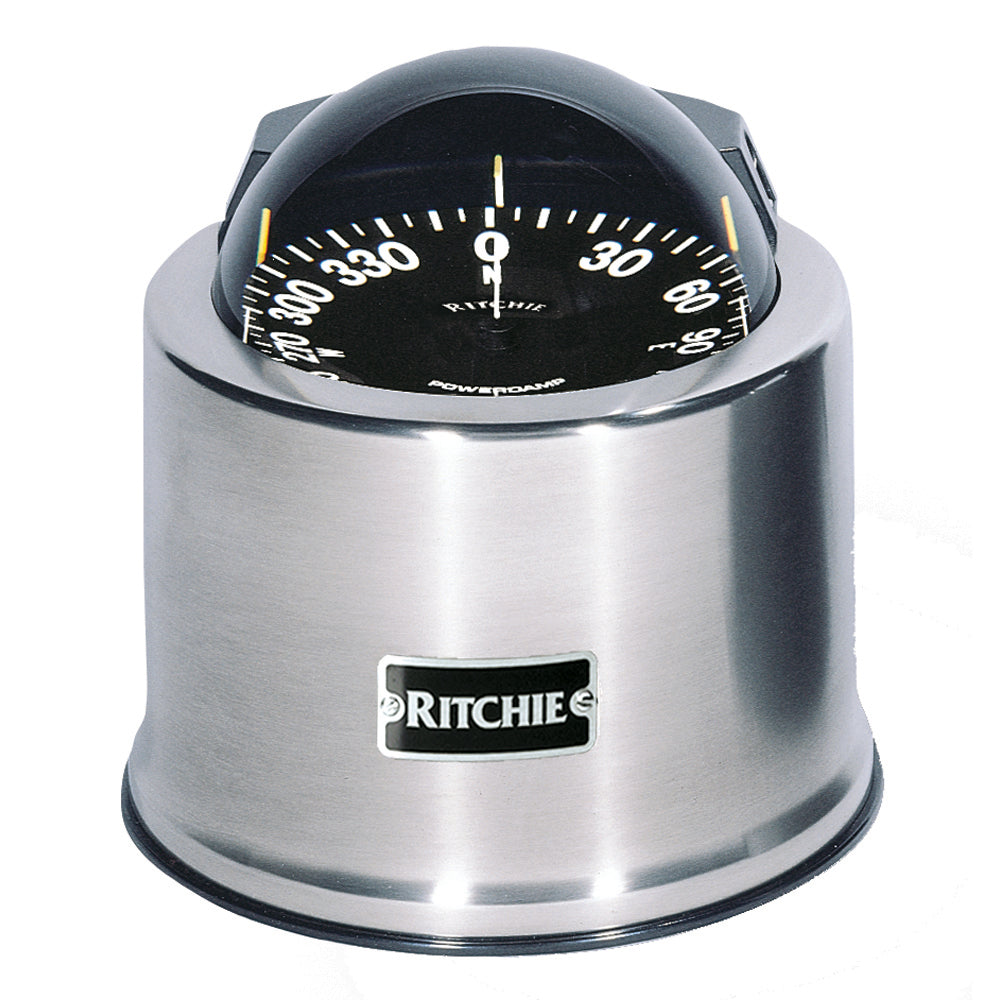

Ritchie SP-5-C GlobeMaster Compass - Pedestal Mount - Stainless Steel - 12V - 5 Degree Card [SP-5-C]
Shipping calculated at checkout.
GlobeMaster Compass Features:
- 5" PowerDamp Flat Dial
- Brushed Stainless Binnacles
- Easily Installed, Fits 7.25" (18.42 cm) Mounting Hole
- Ideal for both Power and Sail Boats
- Lightweight/Easy-to-Align Mounting Base Fits all Popular Sailboat Pedestals
- 45 and 90 Degree Lubber Lines for Easy Reading
- Full Internal Gimbals
- Exclusive Green NiteVu 12 Volt Night Lighting
- Spherical Design with Fiberglass Reinforced Bowl
- High-Capacity Roller Diaphragm for Extended Temperature Operating Ranges
- Built-in Compensators
- Weather Shield Available - Model No. WS-P
- 100% Repairable
- Exclusive 5-Year Ritchie Warranty
Approx. Shipping Weight: 6lbs (2.72 kg)
12 volt lighting standard - 24 & 32 volt lighting options are available.
For Globemaster built before 1996 please see the service manual pages 7-32 and 7-33 or contact Ritchie for replacement lighting.
This compass conforms with ISO 10316(E) and ISO 613:2000(E) standards.
- Read: Rear
- Mounting Style: Pedestal
- Lubber Lines: Yes
- Backlight: Yes
- Box Dimensions: 9"H x 10"W x 11"L WT: 5.9 lbs
- UPC: 010342050397
Quick Guide (pdf)
Owner's Manual (pdf)
