RAM Mount RAM Quick-Grip Phone Mount w/Diamond Base [RAM-B-102-PD3U]

RAM Mount RAM Quick-Grip Phone Mount w/Diamond Base [RAM-B-102-PD3U]

  • $49.49
    Unit price per
  • Save $6

Shipping calculated at checkout.

Only 0 left!
Will be in stock after

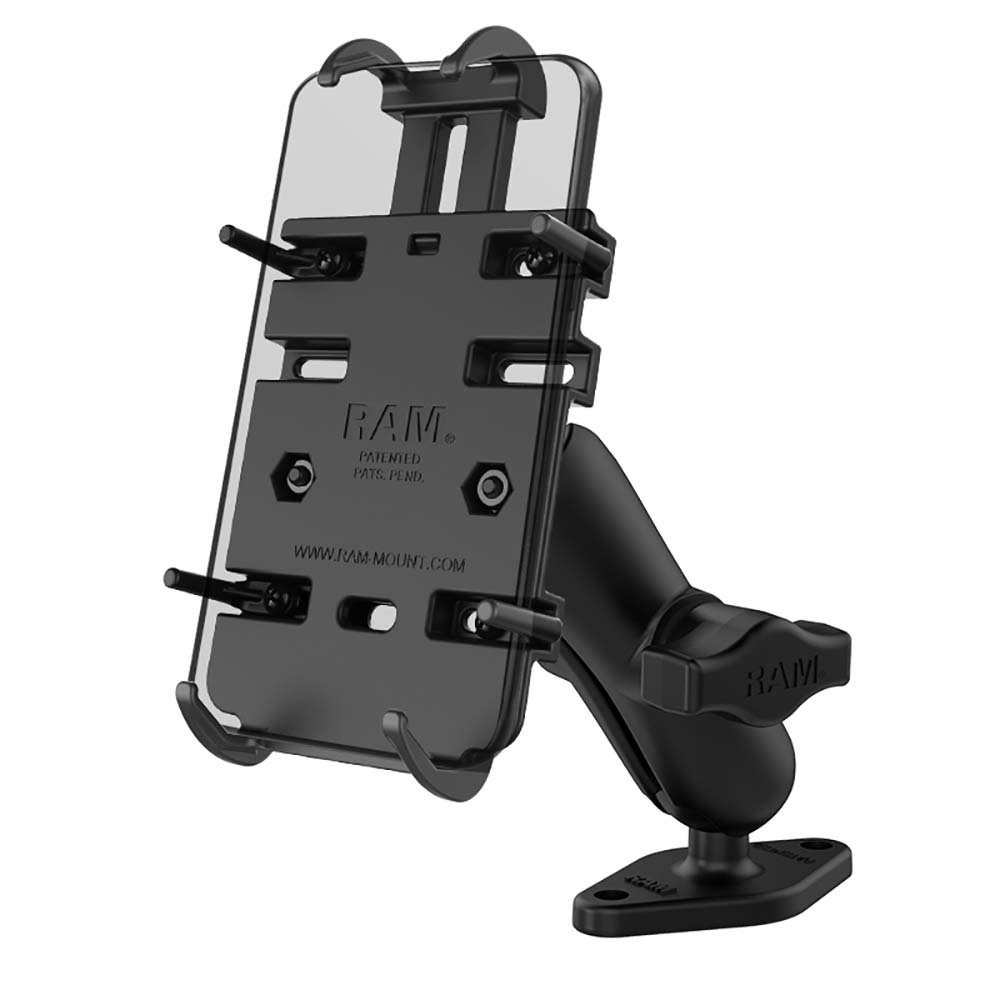

RAM® Quick-Grip™ Phone Mount with Diamond Base

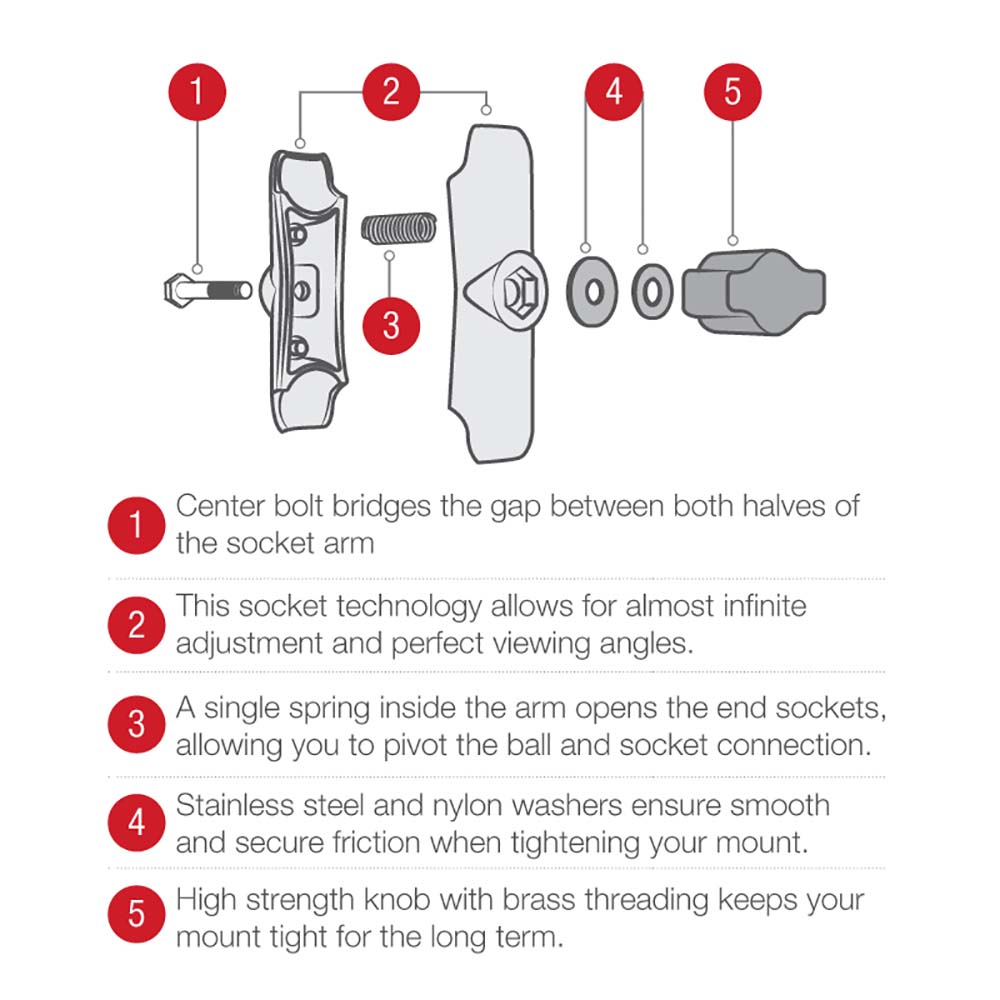

The RAM Quick-Grip™ Flat Surface Mount consists of a 2-hole diamond drill-down base, a double socket arm, and a spring-loaded cradle for supporting most phones. Integrating the industry standard AMPS hole pattern, this mount can connect to any flat surface or to the side of the RAM Tough-Tray™. The double ball and socket design provide adjustment points at both ends of the socket arm with the turn of a single knob, allowing you to set your phone to the optimal viewing position.

Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras.


  • HOLDER DIMENSIONS: Height Range: 4.75" - 5.75", Width Range: 2.19" - 3.25", Max Depth: .72"
  • HOLE PATTERN: 2-Hole AMPS: 1.912"
  • PLATE SIZE: 2.43" x 1.31"
  • BALL/SOCKET SIZE: B Size (1")
  • WEIGHT CAPACITY: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
  • MATERIALS: Marine-grade aluminum, High strength composite
  • WEIGHT: 0.63 lbs.

Quick Guide (pdf)
