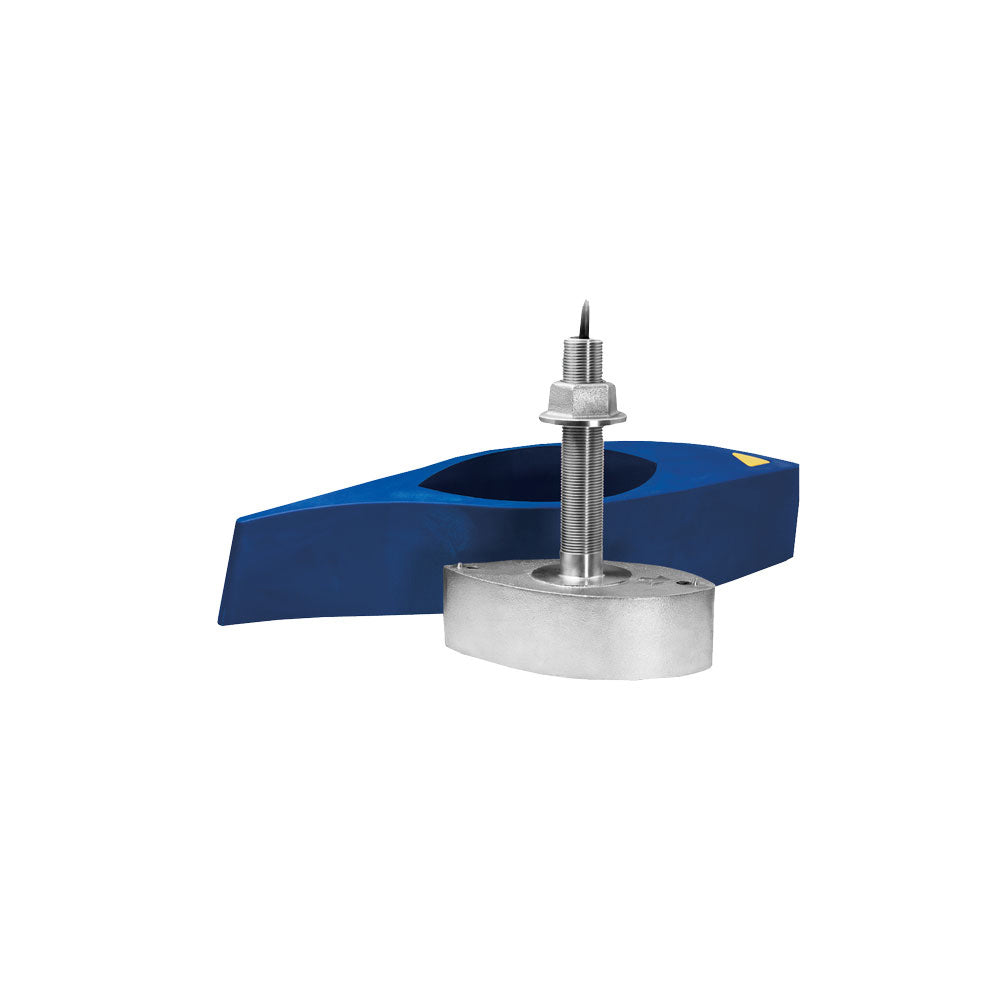

Furuno 556TID-HDD SS260 Stainless Steel Thru-Hull Transducer w/Temp and Fairing Block - 10 Pin [556TID-HDD]

Furuno 556TID-HDD SS260 Stainless Steel Thru-Hull Transducer w/Temp and Fairing Block - 10 Pin [556TID-HDD]

  • $1,299.99
    Unit price per

Shipping calculated at checkout.

Only 0 left!
Will be in stock after

556TID-HDD SS260 Stainless Steel Thru-Hull Transducer w/Temp and Fairing Block - 10 Pin

The SS260 is our best performing, stainless-steel, thru-hull stem for 1 kW echosounders. Its construction utilizes separate 50 kHz and 200 kHz elements for unparalleled deep-water performance and unmatched bottom and water-column detail. The SS260’s narrow beam gives crisp image detail especially suited for fishing shelves, intricate bottom structures, and wrecks.

Standard Features

  • 1,000 Watts Power
  • 50/200 kHz with Diplexer
  • 20/6 degree Beam Angles
  • Stainless Steel Thru-Hull with Temperature
  • 10-Pin Connector
  • High Speed Fairing Block included
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Imagining: Standard
  • Temperature: Yes
  • Speed Included: No
  • Pins: 10
  • Mounting Style: Thru-Hull
  • Chirp: No
  • Box Dimensions: 7"H x 18"W x 26"L WT: 22.15 lbs
  • UPC: 611679310606

Brochure (pdf)
