Wichard Self-Locking Long D Shackle - Diameter 6mm - 1/4" [01213]

Wichard Self-Locking Long D Shackle - Diameter 6mm - 1/4" [01213]

  • $16.99
    Unit price per
  • Save $8.61

Shipping calculated at checkout.

Only 3 left!

Self-Locking Long D Shackle - Diameter 6mm - 1/4"

Features:

  • Self-locking long shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications
  • CE Marking and batch number

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1320
  • WLL (lb) 700
  • Breaking load (lb) 3520
  • Weight (lb) 0.06

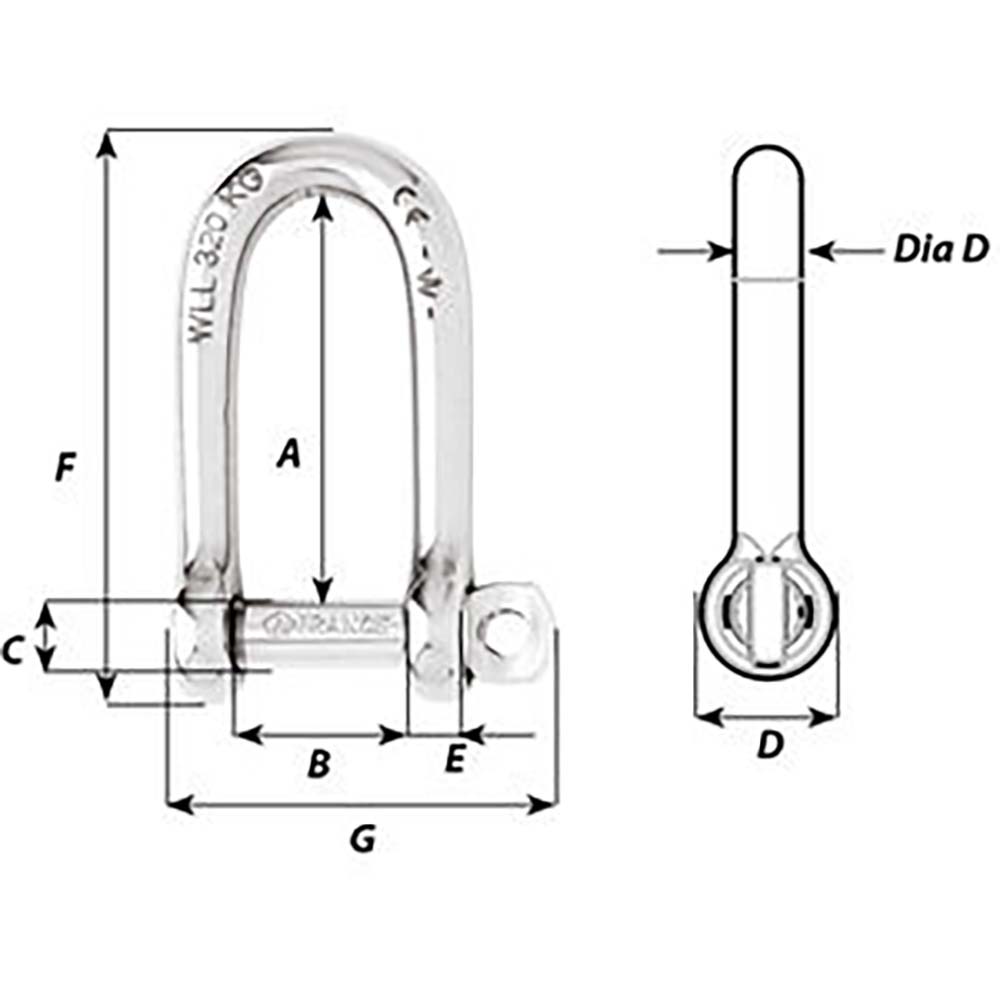

Dimensions (see 2nd image):

  • A (inch) 1-19/64"
  • B (inch) 15/32"
  • C (inch) 15/64"
  • D (inch) 15/32"
  • D diameter (inch) 15/64"
  • E (inch) 13/64"
  • F (inch) 1-27/32"
  • G (inch) 1-7/32"
